VP1200 1000W LED Profile Moving Head Light

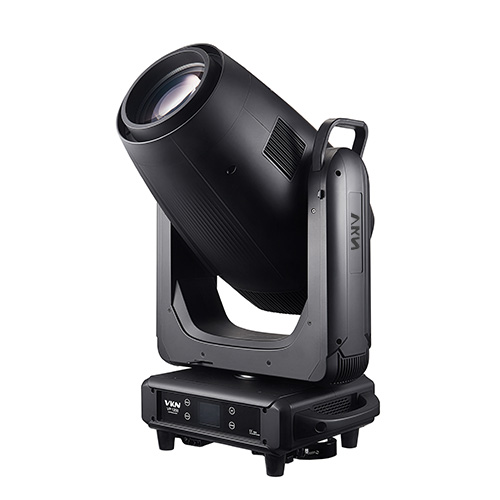

High-End Stage Lighting Framing System with 120° Rotatable 4-Blade Shutter

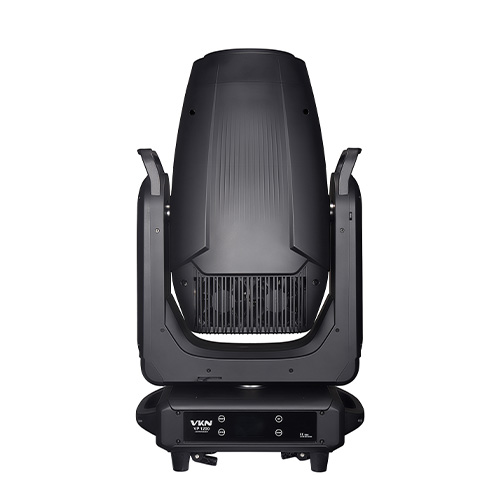

DMX512 RDM Art-Net Control Interface for Professional Moving Head

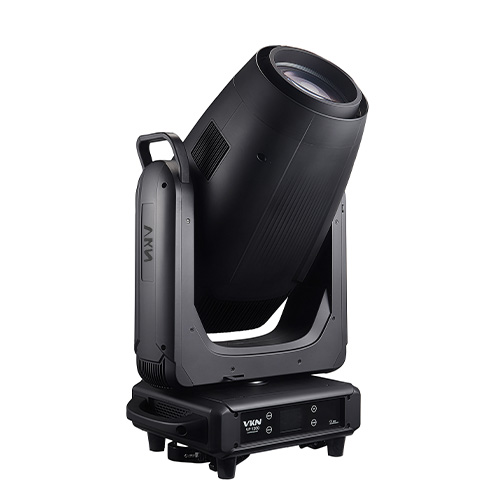

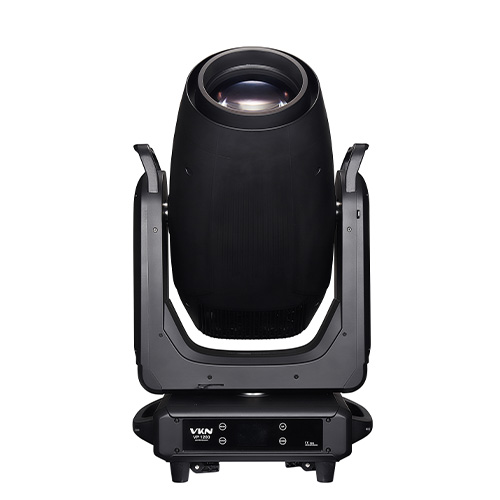

VP1200 1000W LED Profile Moving Head Light

The VP1200 1000W LED Profile features a compact body with 120° framing, NFC, and plug-in CMY/CTO. Ra>90 High CRI mode makes it ideal for stage and broadcast.

Marka modeli :
VP1200
Giriş voltajı :
AC100V-240V, 50/60Hz
Işık kaynağı :
1000W LED module
CRI :
Standard mode Ra >70, high display mode >90 (switchable)
Renk çemberi :
6+1/CMY/CTO
Ürün boyutu :
42.6*28.9*75.1cm
Net ağırlığı :
34.5kg
Koruma seviyesi :
IP20
Kanal modu :
39/41CH

ŞİMDİ BİLGİ ALIN

Function Description

The VKN VP1200 1000W LED Profile Moving Head Light redefines the performance boundaries of high-power framing fixtures. By integrating a powerful 1000W premium light source into a compact and lightweight chassis—the most competitive in its class—it features a 120° rotatable precision framing system that offers ultimate creative freedom for complex light shaping.

Addressing the core pain points of professional rental and theater maintenance, the VP1200 utilizes an innovative plug-in CMY and CTO linear color mixing system, ensuring both silky-smooth color transitions and exceptionally efficient cleaning and maintenance. Furthermore, with advanced NFC smart configuration, dual linear frost filters, and a switchable High CRI mode (Ra > 90), this fixture effortlessly meets the rigorous demands of large-scale tours and broadcast-grade studios. It stands as the premier solution for those seeking peak optical performance and highly efficient project deployment.

Technical parameters

Light Source System

Light source specification: 1000W LED module
Light source color temperature: 6500K
Light source life: >20,000 hours
CRI: standard mode Ra >70, high display mode >90 (switchable)

Optical System

Zoom range: electron linear zoom 5.5-50 degrees
Lens diameter：148mm
Lux：115,000 Lux @5m

Color System

Plug-in CMY continuous color mixing
Plug-in linear CTO color temperature correction (7200–2600K)
1 independent 6-color wheel with stepped and linear color change modes, including adjustable rainbow effect

Gobo system

Rotating Gobo Wheel: 7 interchangeable glass gobos, each can rotate forwards and backwards independently
Fixed Gobo Wheel: 7 metal gobos + open, with variable-speed jitter effect

Cutting System

4 independent cutting blades, individually controllable to create different product sizes and geometric shapes, rotatable 120°

Effect

Independent effect disc
Prism: 4-facet prism and 4-facet linear prism, independently bi-directional rotation
Dimming: 0-100% linear adjustment
Strobe: multiple speed electronic strobe effects
Frost: 2 independent frost plates, 1 light 0–100% frost effect, 1 medium 0–100% linear frost effect, producing natural soft beam
Electric aperture: 5-100% rapid linear adjustment

Pan &Tilt

Pan/Tilt movement:540°/270°
Automatically return to its original position and perform 16-bit precision fine-tuning
A magnetic encoder positioning system is adopted

Electrical & Interface

Input voltage: AC100V-240V, 50/60Hz
Rated Power: 1200W

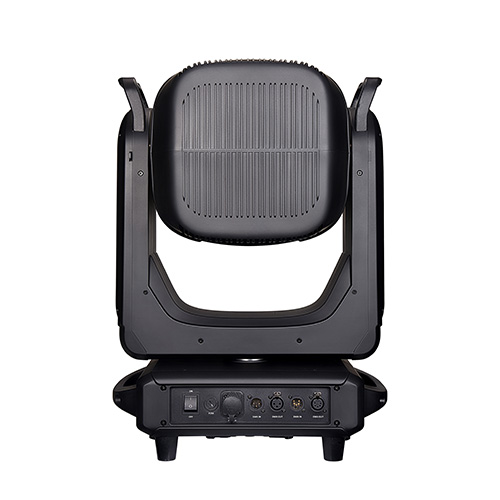

Signal interface: 3-core+5-core XLR signal input/output

Control & Programming

Channel mode: 39/41CH
Control Protocols: DMX512/RDM, optional NFC, Art-Net
Display mode: 2.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
Energy saving sleep: automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
Software upgrade: software can be upgraded via DMX signal cable
Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system
